Router Machines

What Comes with Your New CNC Machine

  • Complete System Comes Ready to Operate
  • Simply Plug and Play
  • Each system includes everything you need to begin.
  • A computer and software configured and tested to operate your new CNC machine. An equipment stand that allows for safe operation and control of your process, and a set of easy to follow instructions.

System Requirements
Table and Controls require (1) 110 -120V AC 1- phase outlet
(Spindle and Vacuum Hold down bed May Require Additional Power)



Controller & Monitor Included

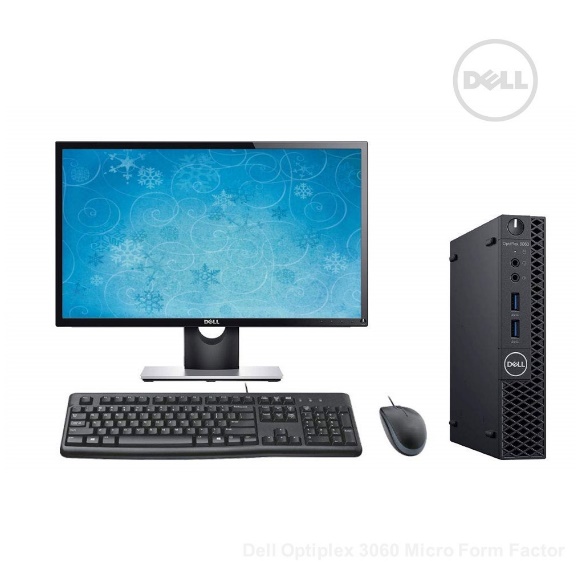

  • Our system comes with a Dell Desktop Computer and Stand for Safe storage and operation of your router cutting process.
  • Loaded with Intel I3 Duo Core Processor 4 Gigabytes DDR4 SDRAM Memory
  • 500 Gigabyte Hard Drive with (4) - USB ports (2 front/2 rear)
  • 1 - RJ-45 Ethernet port and 1- HDMI Display Port, adaptor for HDMI to VGA.
  • 19" LED Computer Monitor, a USB Keyboard, and Optical Mouse
  • Loaded with Windows 10 Professional, 64-bit OS fully interfaced and tested with Customer's Machine before you turn it on

Software Included

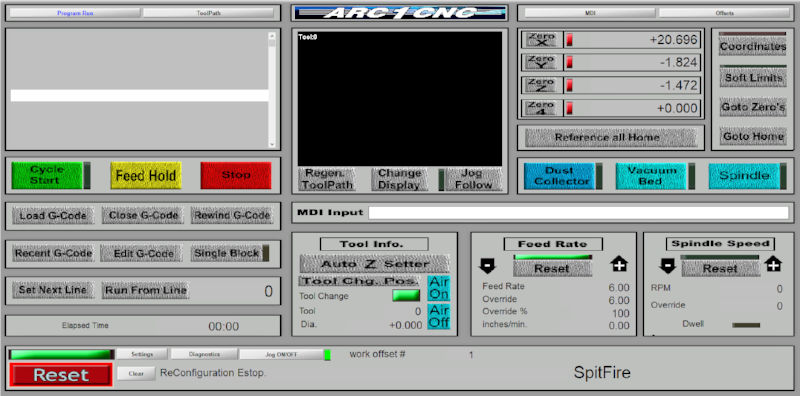

Arc1CNC Control Software

  • Control system comes loaded on computer with Mach3
  • Allows direct import of DXF, BMP, JPG, and HPGL files
  • Visual Gcode display on your monitor to track cutting in progress
  • Customizable M-Codes and Macros using vbscript
  • Fully customizable interface Generates G-code via lazyCam or G-wizard
Also Included

SignTorch Super Bundle

  • 14,500 Vector Art Designs
  • 5 Vector Formats: AI,CMX,EPS,SVG & DXF Clip Art for CNC CAD CAM


Also Included

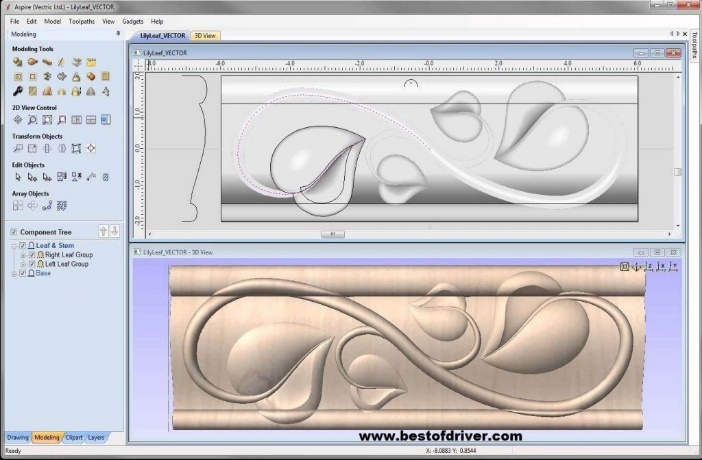

VCarve Pro CAD/CAM software:

  • Integrated 2D-3D CAD program to create and edit CAD files for CNC Router
  • Design and Layout Tools Import and Machine 3D Models
  • Clipart Browser Full of 3D Vectric Files and 2D Vector Artwork
  • Import and machine single 3D models Including;
  • STL, OBJ, 3DM and SKP file types
  • Complete set of 2D Design and Layout Tools
  • Easily create vectors from scratch or import and edit bitmap images
  • Other Fetures Including; Import Toolpaths, Printing, File Thumbnails
  • Video Tutorials, 64-Bit Support, Gadgets and more.

Features of Our Machine

Every Machine Includes:

Fully welded Frame No Assembly Needed

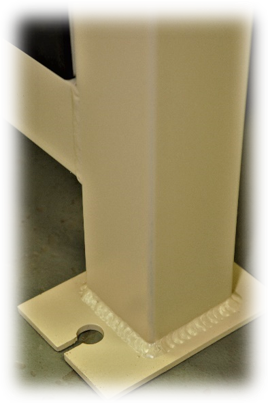

Fully welded frame

Machine Ground Rails with V-Grove Barings

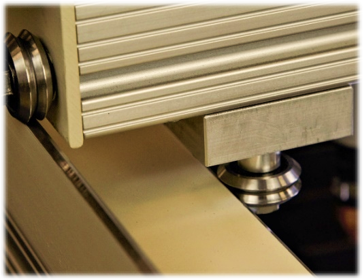

Vgroove Wheel

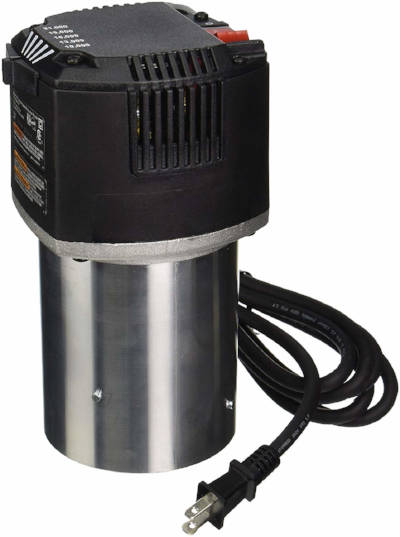

3.25 HP Router with Spindle Upgrade Available

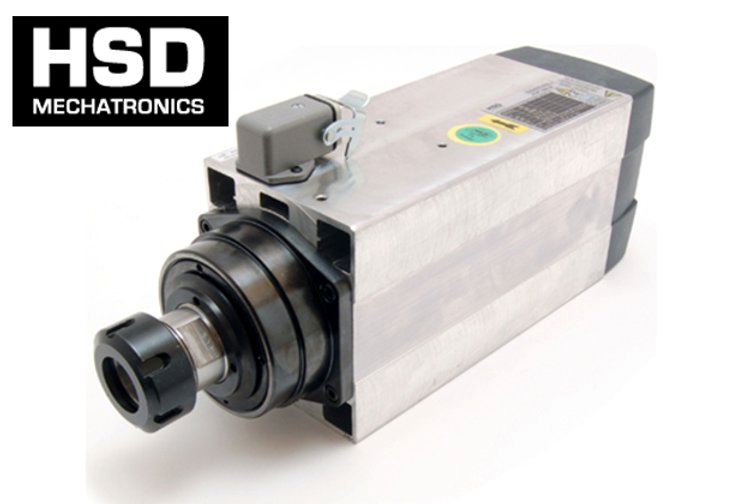

porter cablespindle_upgrade.png

Upgraded Spindle shown on right or below.

Performance Specs

Position Speeds (X,Y,Z):

750,750,500 IPM

Step Resolution:

.0005"

Positioning Accuracy:

.002"

Cutting Accuracy:

(+/-) .005"

Axis Drive System (X,Y)

Rack & Pinion

Axis Drive System (Z):

Rack & Pinion

Router Add-On Options

Vacuum Bed Table

  • Vacuum Bed allows you to place material down on your table, apply the vacuum and cut parts without clamping
  • Setup specific sealed vacuum fixtures or templates to allow for the efficient loading and unloading turnaround.
  • Our Vacuum Beds include all the necessary plumbing to set up a multi-zone material holding system that increases production saving you time and money.
  • Phenolic table is strong long-lasting material that does not warp keeping parts in place while cutting. Vacuum Beds larger than 4x8 will be mad of aluminium.

Regenerative Oil Free Vacuum Pumps

Low Noise Pump includes an inlet filter and relief valves

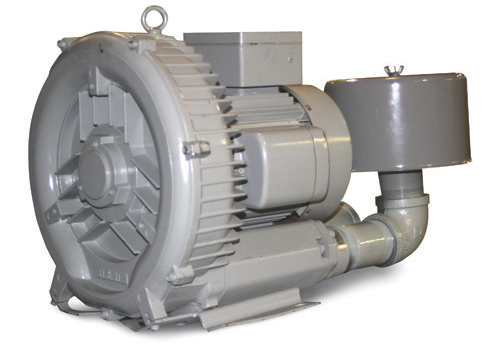

11 5 hp pump11.5 HP Table size 4’x4’ and 4’x8’ ($4,600 Add-On)

  • Motor: 3 PH, 220/440V, 11.5 HP
  • Inlet/Outlet: 2.5"
  • Power: 30A @ 220V
  • Max CFM: 353
  • Max Pressure in inches of H<sub>2</sub>O: 161

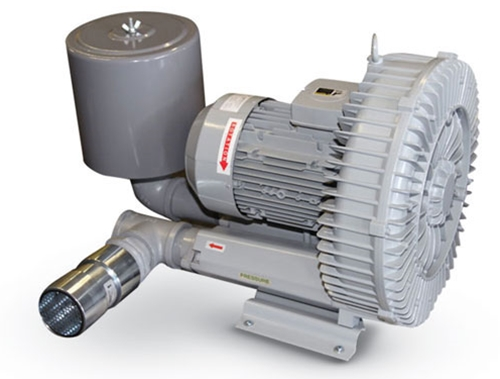

11 5 hp pump15.5 HP Table size 5’x10’ ($6,500 Add-On)

  • Motor: 3 PH, 220/440V, 15 HP
  • Inlet/Outlet: 2.5"
  • Power: 40A @ 220V
  • Max CFM: 353
  • Max Pressure in inches of H<sub>2</sub>O: 248
